How To Make Dust Meter | DIY Dust Monitor | Arduino Project| SekhoHub|

Hi friends in this Project I’m going to make dust meter using Arduino so without further let’s start this Project.

Materials for the Project.

• 1 X Arduino Uno
• 1x 16×2 LCD
•  1X Dust sensor
•  1X 5V Power Supply
•  JUMPER WIRES


  ---

let’s see the connections of the project .

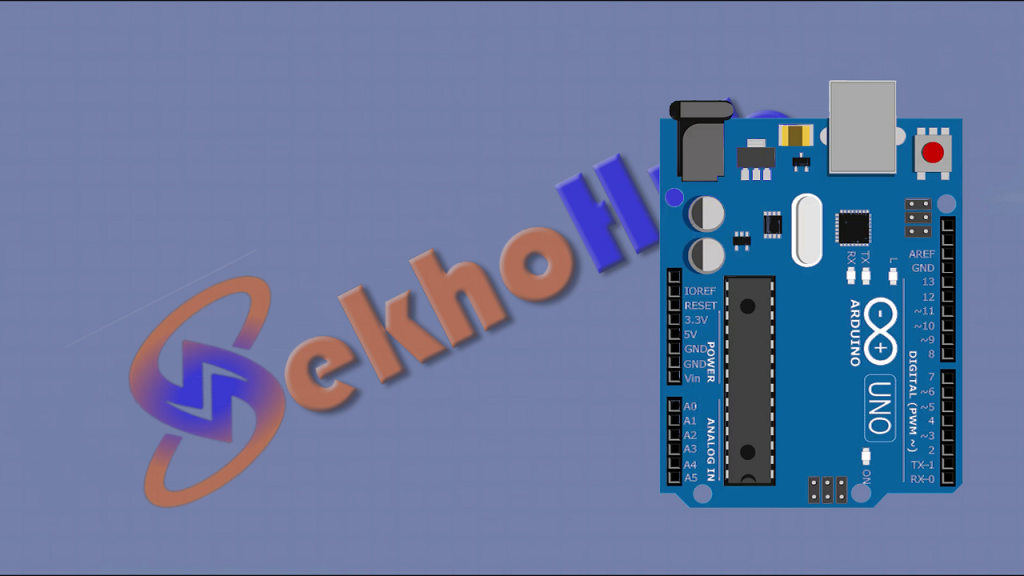

1.  First Connect Arduino.


   ---

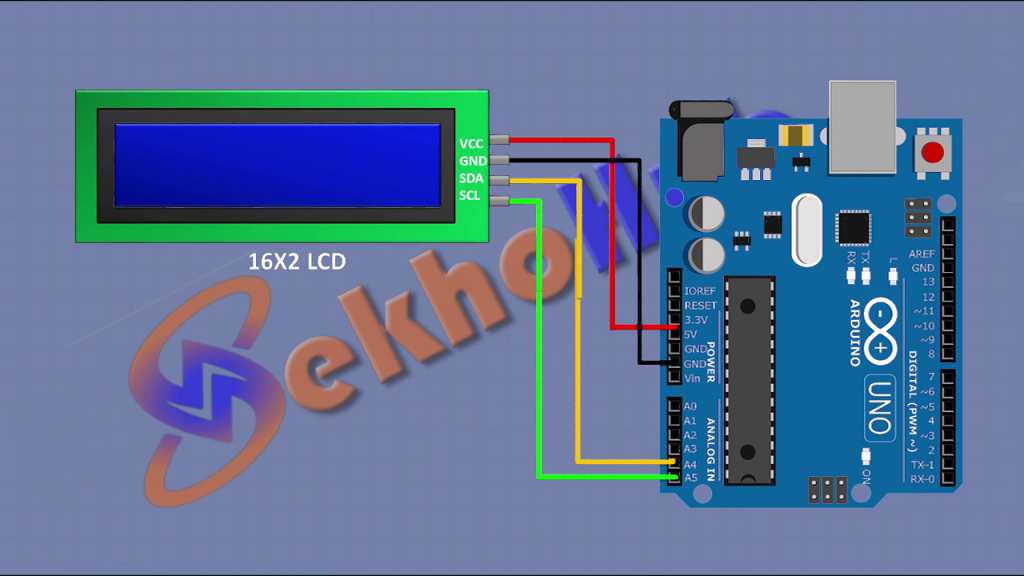

2. Then connect that LCD display and connect its VCC pin to fivefold pin of arino its ground pin to ground its SDA pin to A4 pin of arino and it’s pin to A5 pin of arino.


   ---

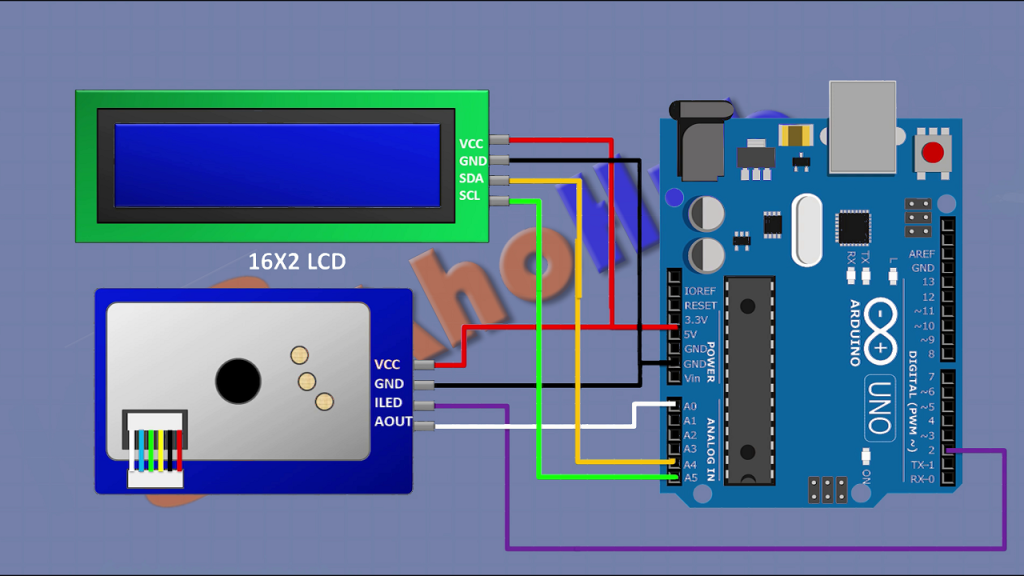

3. Now connect the sensor and connect its VCC pin to 5 pin of arbino its ground pin to ground its LED pin to D2 pin of arbino and it’s out pin to a zero pin of arbino.


   ---

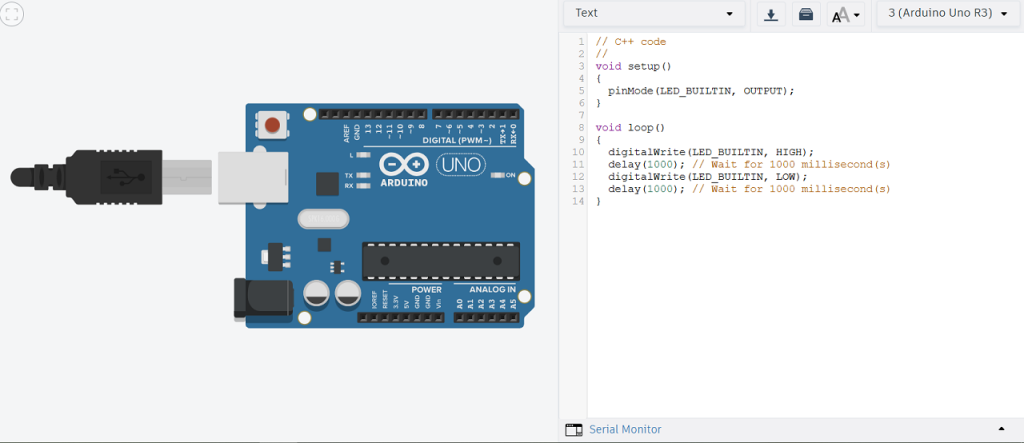

   So these are all the connections now let’s upload the code to aduino.





   So that’s it for today’s Project I hope you have enjoyed this

   Project for more Project like that stay tuned and I will see you in the next Project.

   |Test the project|
